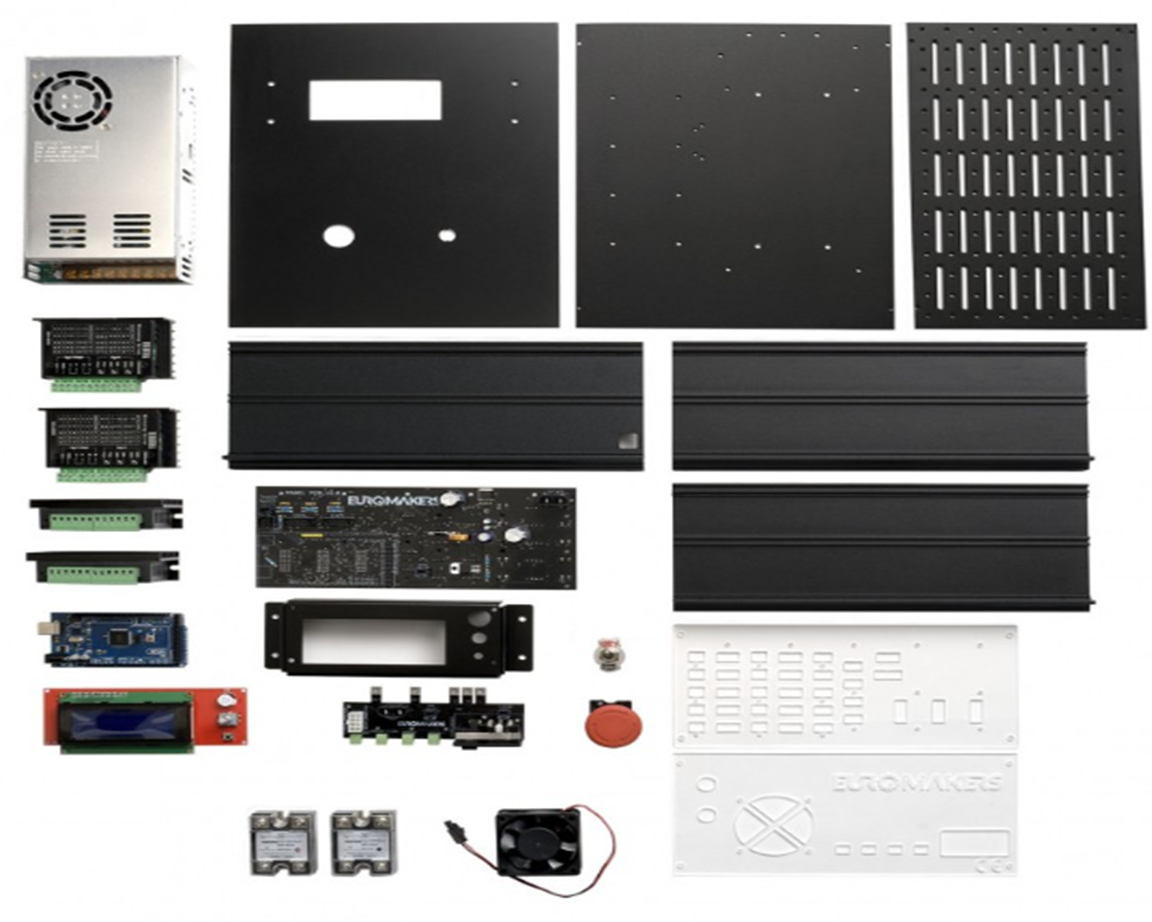

Five Axis CNC Controller is a general purpose CNC controller for up to 5 linear as well as rotary axis. The controller is such that axis type i.e. Linear as well rotary can be configured by the user apart from the number of limit switch to activate in case required axis is less than 5. The controller is capable of up to 0.01mm/0.1° accuracy in all the five axis. Further the acceleration values of each axis can be defined separately to enable better control over the system as rotary axis can generally have higher acceleration values as compared to the linear axis. The controller has a LCD display for display of parameters along with bi directional rotary encoder for fast and efficient control of the machine options and jogging operation. Following are the key features for this project.
- Five Axis CNC controller is developed for Euromakers SAS, France (https://euro-makers.com/gb/)
- Product can be bought at the following link https://euro-makers.com/gb/cnc-machine/4370-kit-electronique-cnc-aureus-3x-grbl-5-axes-3701172931952.html
- Completed mechanical, electronics and firmware development including G Code parser as well as stepper/servo motor driver in a short span of 4 months
- G code can be fed either by the SD card, Computer based G Code sender as well as cloud sender
- System has many Advanced features and supports Automatic Tool Changer with Pneumatic controls apart from AC/DC spindle, Vacuum Bed, Both Mist and Flood coolant mode, etc
- Advanced version is also developed which supports specialized heads like Fabric cutting head, Marking head, etc
Our company provides end to end support in the domain of New Product Design which we did for this project. If you want the Research and Development or New Product Design done as was done for this project kindly contact us at the email given in the contact tab.
